Live VLF Station 24 Hour SID Data

Live VLF Station SID data from 37.343850,-79.288216 sorted by ascending frequency. This page automatically refreshes every 15 minutes.
This data is also available in 3 day, and 7 day intervals.


What is a SID?

SID is an abbreviation for Sudden Ionospheric Disturbance. After a solar flare on the Sun, it takes about 8 minutes for the ultraviolet (UV), x-ray and (sometimes) gamma ray radiation to hit the side of the Earth facing the Sun. The radiation is absorbed by the atmosphere, knocking electrons free. The D and E layers increase in density, which has the effect of causing complete or partial blackouts of short wave radio communications. Interestingly, the same effect that causes short wave fading enhances longer wavelength propagation (like VLF). So, you can 'see' a SID by monitoring distant VLF transmitters.

For example, here is NAA (24kHz), with a small SID around 15:15 UTC (circled in red):

SID Example

The graphs below allow monitoring for SIDs by looking for unexpected slope changes in the graphs. When it is observed in more than one graph, it reduces the likelyhood that it is an artifact limited to a specific VLF transmitter.

For more information:

Sudden Ionospheric Disturbance
The D Region
The E Region




GBZ

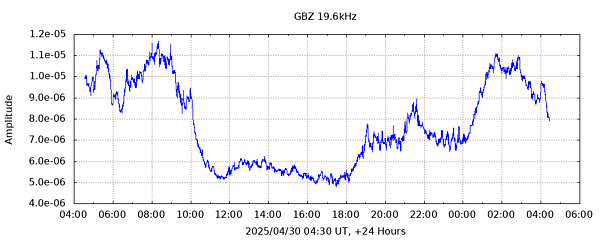

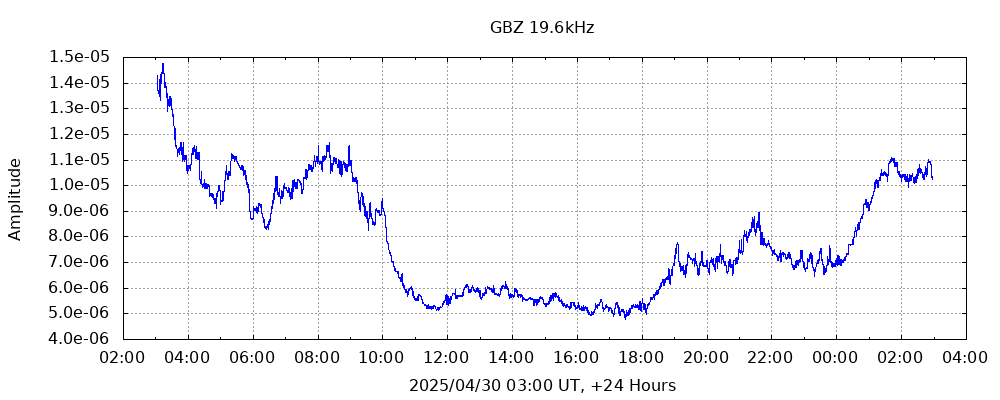

GBZ, Anthorn, UK. Click on image for larger version.
Distance: 5854.8 km (3638.0 mi)  |  Bearing: 44.6° | Data


NPM

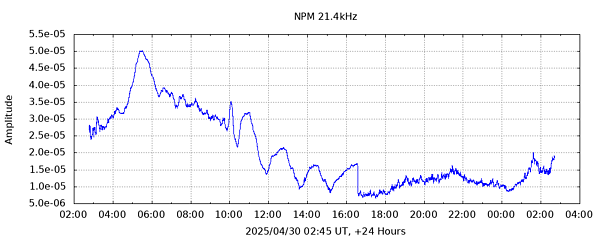

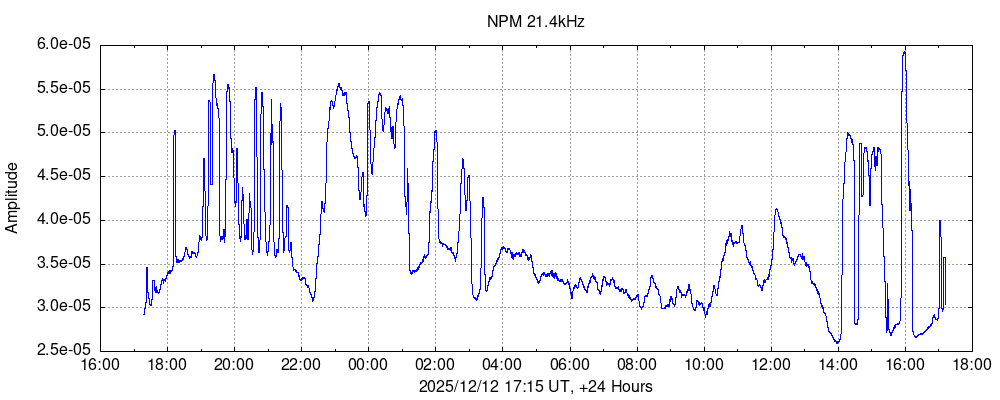

NPM, Lualuahei, HI, USA. Click on image for larger version.
Distance: 7632.8 km (4742.8 mi)  |  Bearing: 281.2° | Data


NAA

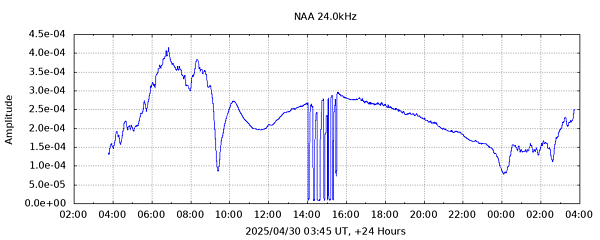

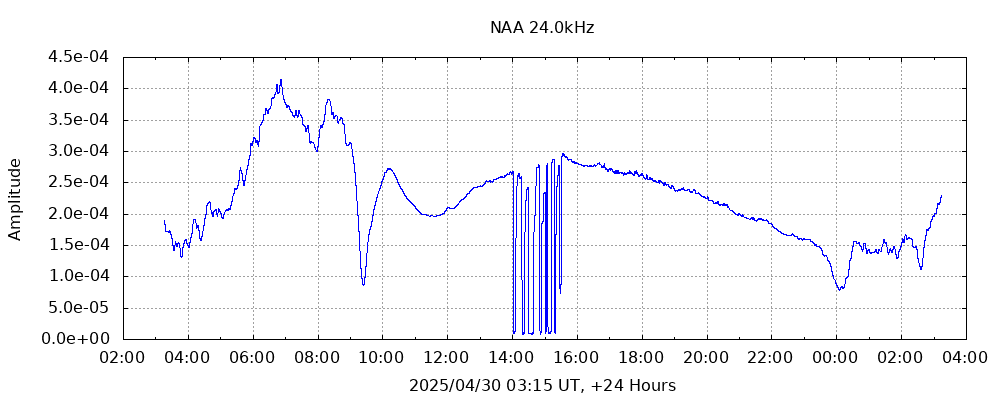

NAA, Cutler, Maine, USA. Click on image for larger version.
Distance: 1292.0 km (802.8 mi)  |  Bearing: 47.3° | Data


NLK

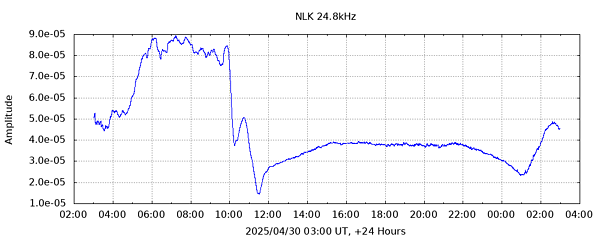

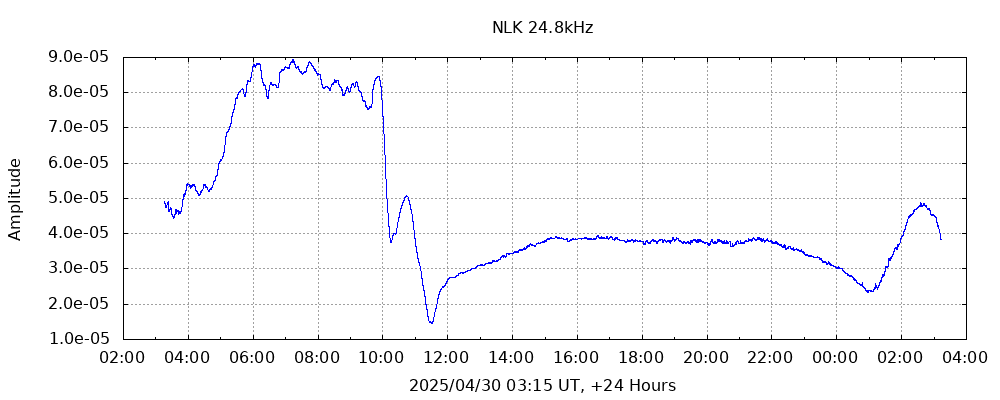

NLK, Seattle, Washington, USA. Click on image for larger version.
Distance: 3630.4 km (2255.8 mi)  |  Bearing: 303.2° | Data


NML

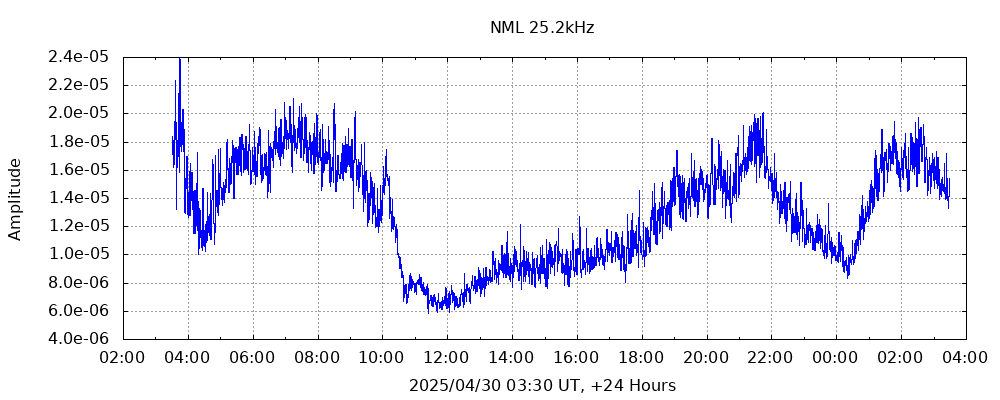

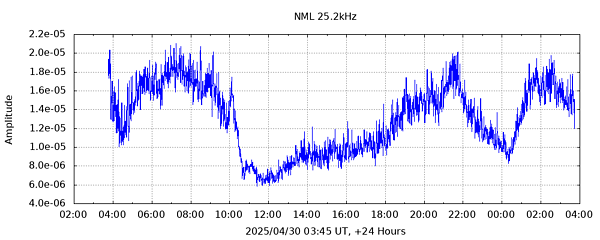

NML, La Moure, North Dakota, USA. Click on image for larger version.
Distance: 1862.6 km (1157.4 mi)  |  Bearing: 308.6° | Data


NRK

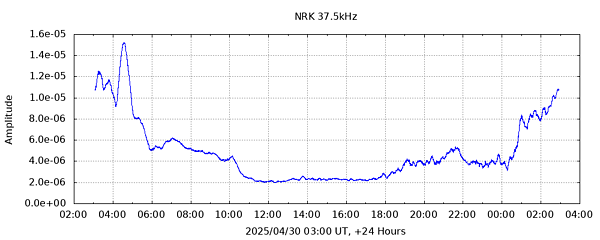

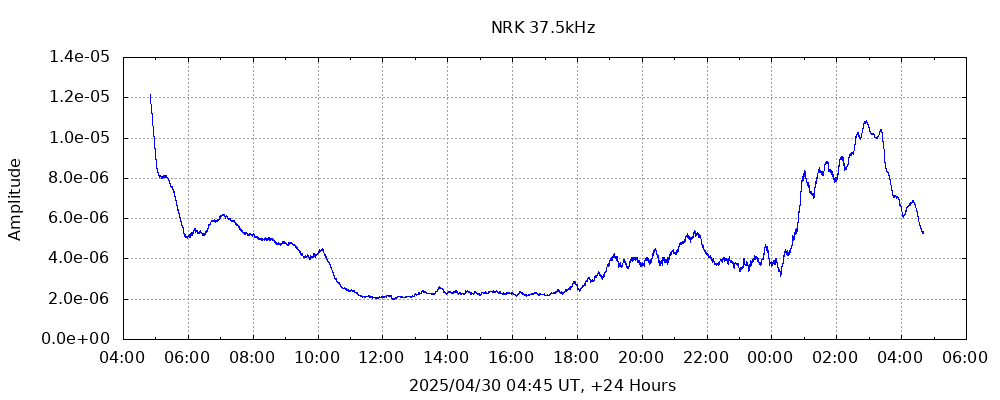

NRK, Grindavik, Iceland. Click on image for larger version.
Distance: 4736.8 km (2943.3 mi)  |  Bearing: 33.0° | Data


NST

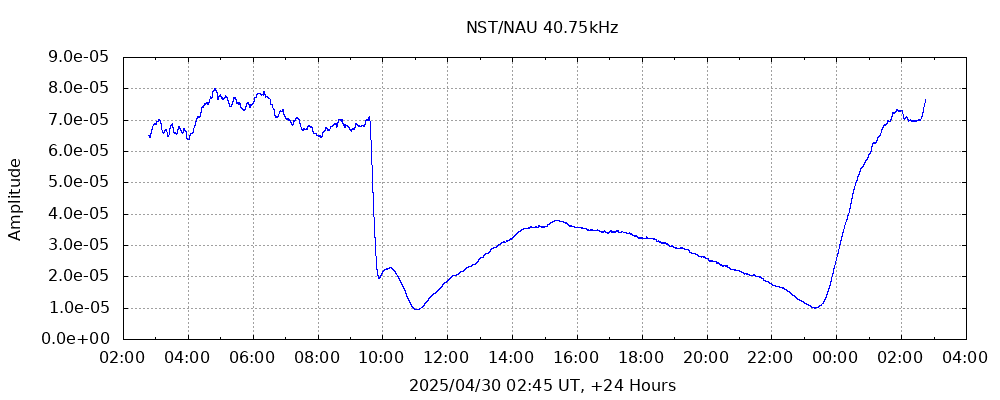

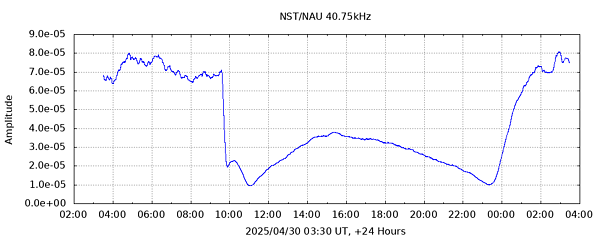

NST, Aguada, Puerto Rico. Click on image for larger version.
Distance: 2415.2 km (1500.7 mi)  |  Bearing: 147.4° | Data


WWVB

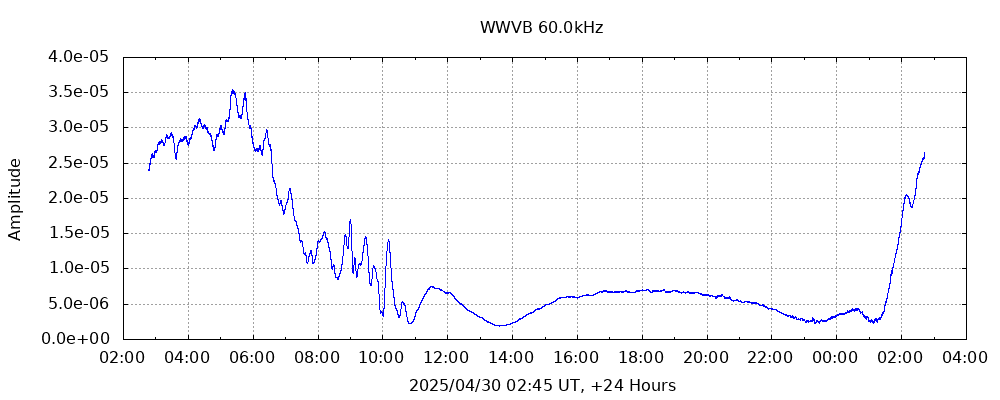

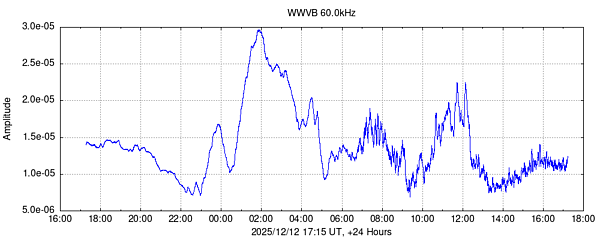

WWVB, Fort Collins, Colorado, USA. Click on image for larger version.
Distance: 2248.6 km (1397.2 mi)  |  Bearing: 287.5° | Data


FUG

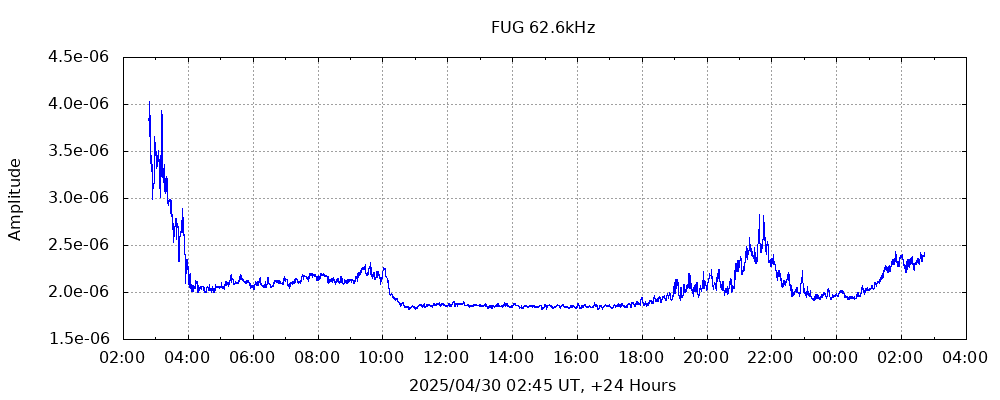

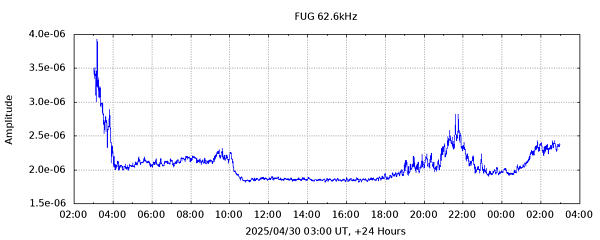

FUG, La Regine, France. Click on image for larger version.
Distance: 6649.8 km (4132.0 mi)  |  Bearing: 56.3° | Data


FUE

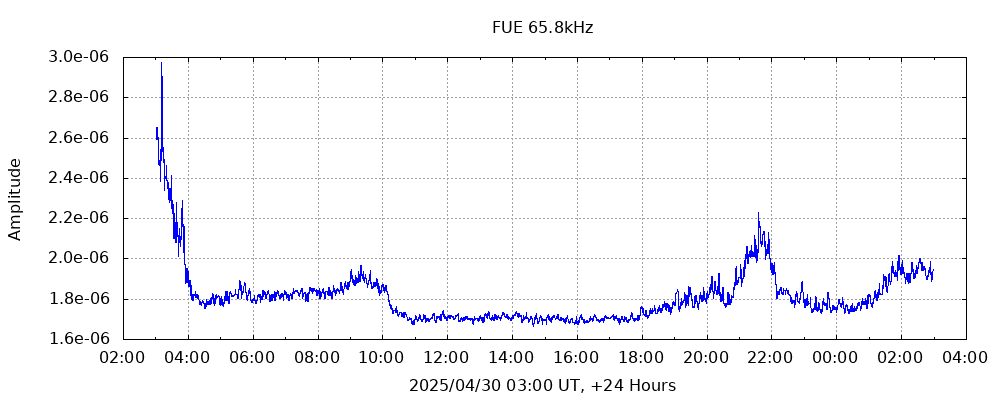

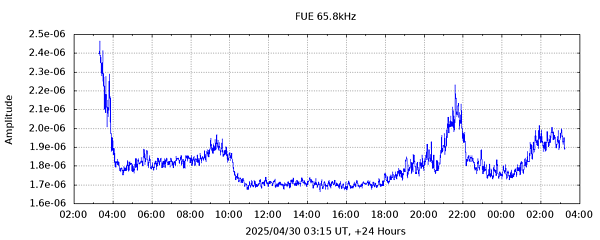

FUE, Kerlouan, France. Click on image for larger version.
Distance: 5974.5 km (3712.4 mi)  |  Bearing: 52.3° | Data


Sfreic Intensity 5-9kHz

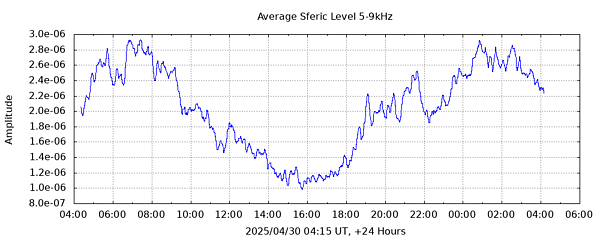

24 Hour Average Sferic Level 5-9kHz (click graph for larger image)  |  Data



Hum Levels 24 Hr

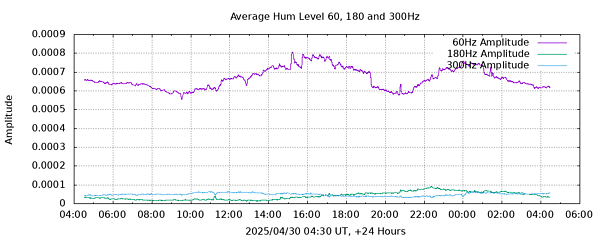

24 Hour Average Hum Level (click graph for larger image)  |  Data



Other data sets are available upon request - Contact me
